NZXT H9 Flow

Basic Information

Manufacturer

NZXT

Brand

FLOW

Series

H Series

Form Factor & Dimensions

Form Factor

E-ATX, ATX, Micro-ATX, Mini-ITX

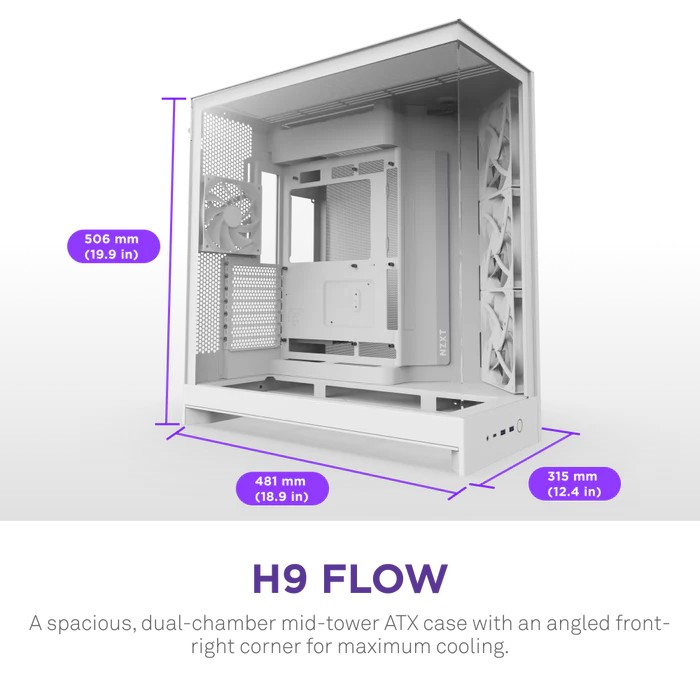

Dimensions (L×W×H)

481.0 × 315.0 × 506.0 mm

Weight

12.46 kg

Max GPU Length

459 mm

Max CPU Cooler Height

165 mm

Max PSU Length

200 mm

Included Fan Size

140mm

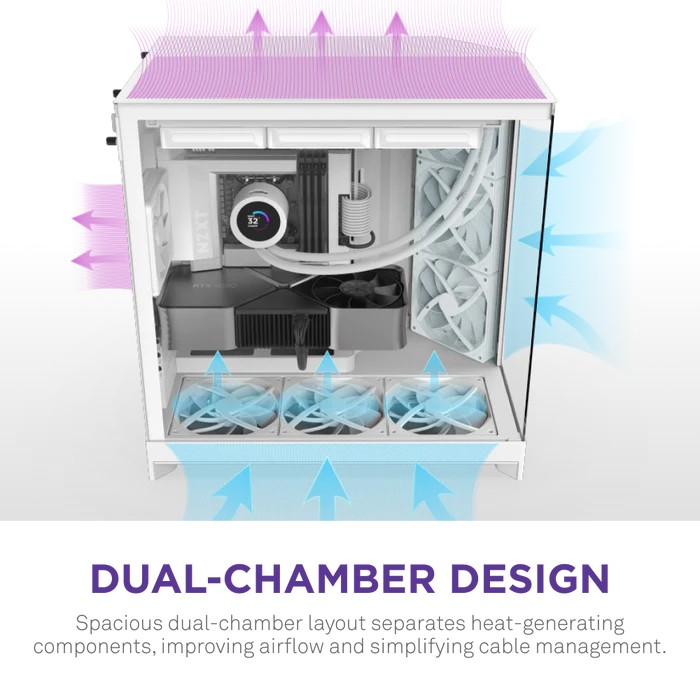

Cooling & Thermal

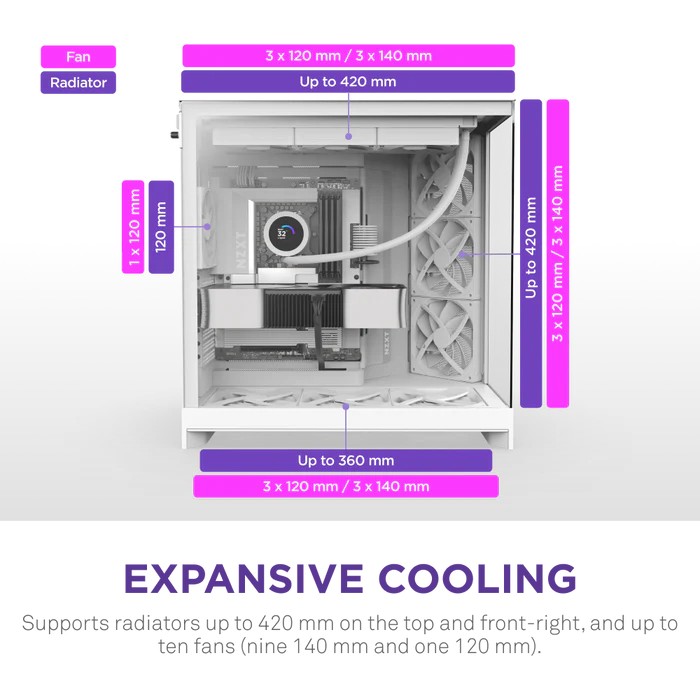

Fan Support (Max)

Front: 3× 140mm | Top: 3× 120mm, 140mm | Rear: 1× 120mm

Included Fans

4 total (3× Front, 3× Top, 1× Rear)

Included Fan Type

F140Q (CV)

Features & Technology

Features

Dust Filters (Removable), Cable Management, 20× Cable Tie Points

Additional Features

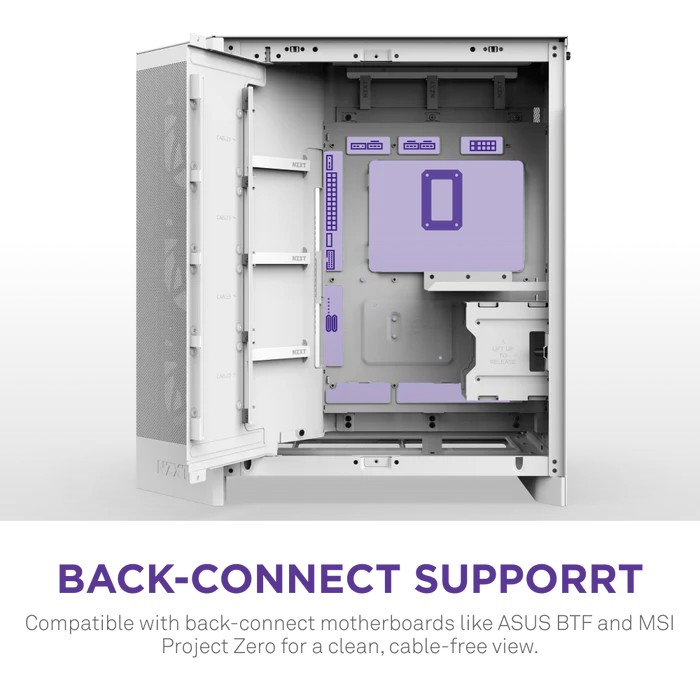

Back-Connect Ready: Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look.

Memory & Storage

Case Type

Mid Tower

Total Drive Capacity

6

Warranty & Support

Motherboard Support

E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX

Radiator Support

Front: 360mm, 420mm

Other Specifications

Internal Volume

76.70 L

Drive Bays

4× 3.5", 2× 2.5"

PCIe Slots

7

Front I/O

1× USB-C (USB 3.2 Gen2x2), 2× USB-A (USB 3.0), Audio (1× jack)

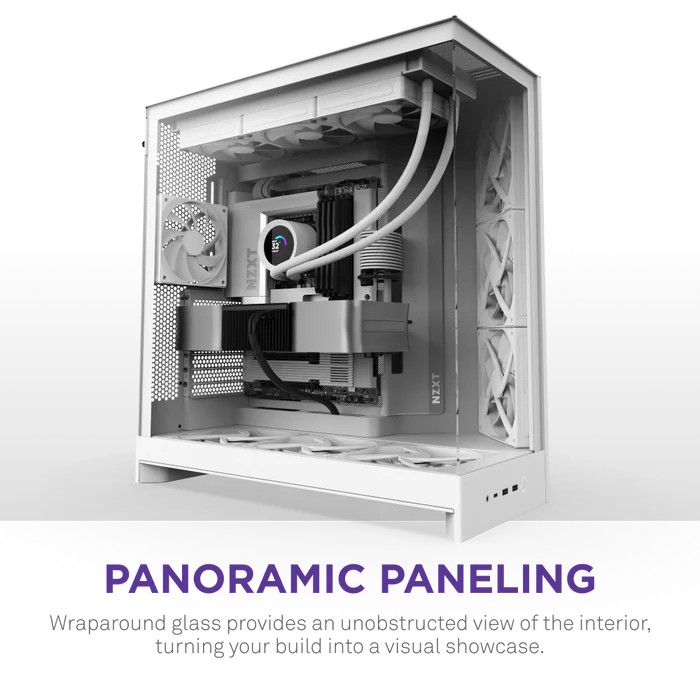

Side Panel

Tempered Glass

Side Panel Tint

Clear

Tempered Glass Panels

2

Material

SGCC steel
